Brand new original industrial-grade LCD splicing screen, stable performance, service life of more than 60,000 hours, meeting 7 * 24 hours of uninterrupted work;
High brightness, high color gamut, and high contrast to ensure perfect display effect;
Anti-glare treatment, outstanding performance under strong light;
178 ° wide viewing angle design, full viewing;
Intelligent management to ensure long-term operation;
24-Hour Hour Hotline:
136-9217-3135
PANEL | Panel type | LG 49” IPS LCD Panel |
Display Area | 1073.8*604mm(H*V) | |
Show ratio | 16:9 | |
Backlight | LED (Straight-down) | |
Resolution | 1920(RGB)×1080(FHD) | |
Pixel Pitch | 0.5592mm*0.5592mm(H/V) | |
Color | 16.7M (8bit) | |
Brightness | 500cd/m2 | |
Contrast ratio | 1400:1 | |
Viewing Angle | 178°(H) / 178°(V) | |
Response time | ≤6ms | |
Life Expectancy | 60000 Hours | |
Physical Bezel | 3.5mm(U/L:2.3mm, D/R:1.2mm) | |
Function | S-System | PAL/NTSC/SECAM |
Menu language | Chinese, English and others | |
Mode of operation | The remote control | |

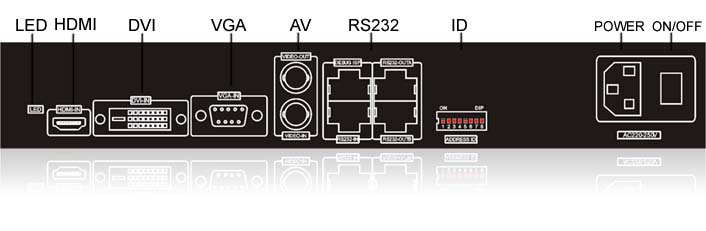

IN/OUT
SIGNAL
| VGA | 1 |
DVI | 1 | |
HDMI | 1 | |
Composite-video in | 1(BNC×1) | |
Composite-video out | 1(BNC×1) | |
Control signal input | RS232*2（RJ45-8 interface） | |
Control signal output | RS232*2（RJ45-8 interface） | |
POWER | Voltage | AC100-240V, 50 / 60HZ |
Power consumption | 120W | |
T / H | Work temperature | 0℃～50℃ |
Storage temperature | -20℃～60℃ | |
Humidness | 20%～80% | |
INSTALL | Cabinet/Rack | Customized |
Accessories | Customized | |
Installation | Wall-mounted/Floor-standing/Cabinet/Embedded | |
Others | Dimension | 1077.58*607.8*115.3mm(H*V*T) |
Appearance color | Black | |
Casing material | Metal | |
Net weight | 23KG |
