Original industrial DID LCD splicing screen, high performance, service life of more than 60,000 hours, meeting 7 * 24 hours of uninterrupted work;
High brightness, high color gamut, and high contrast to ensure perfect display effect;
178 ° wide viewing angle design, full viewing;
Using direct-type LED backlight system, low power consumption, high environmental protection, uniform color;
Intelligent management to ensure long-term operation;
24-Hour Hour Hotline:
136-9217-3135
PANEL | Panel Type | Samsung 46” Original Industrial DID LCD Panel |
Display Area | 1018.08×572.67mm(H*V) | |
Pixel Pitch | 0.53mm*0.53mm(H*V) | |
Show Ratio | 16: 9 | |
Backlight | LED | |
Resolution | 1920(RGB)×1080(FHD) | |
Color | 16.7M (8bit) | |
Brightness | 500cd/m2 | |
Contrast ratio | 3500:1 | |
Visual Angle | 178°(H) / 178°(V) | |
Response time | ≤6ms | |
Life Expectancy | 60000 Hours | |
Physical Bezel | 5.3mm (Up-left:3.6mm; Down-right: 1.7mm) | |
Function | S-System | PAL/NTSC/SECAM |
Menu language | Chinese, English and others | |
Mode of operation | The remote control | |

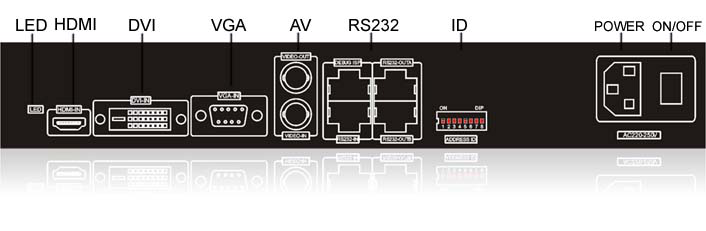

IN/OUT
SIGNAL
| VGA | 1 |
DVI | 1 | |
HDMI | 1 | |
Composite-video in | 1(BNC×1) | |
Composite-video out | 1(BNC×1) | |
Control signal input | RS232*2（RJ45-8 interface） | |
Control signal output | RS232*2（RJ45-8 interface） | |
POWER | Voltage | AC100-240V, 50 / 60HZ |
Power consumption | 120W | |
T / H | Work temperature | 0℃～50℃ |
Storage temperature | -20℃～60℃ | |
Humidness | 20%～80% | |
INSTALL | Cabinet/Rack | Custom |
Accessories | Custom | |
Installation | Cabinet/Wall/Rack/Brick,Embedded ect. | |
Others | Dimension | 1023.98*578.57*140.5mm |
Appearance Color | Black | |
Casing Material | Metal | |
Net Weight | 21KG |
